Jaeger架构

Jaeger 既可以部署为一体式二进制文件 (ALL IN ONE)，其中所有 Jaeger 后端组件都运行在单个进程中，也可以部署为可扩展的分布式系统 (高可用架构)

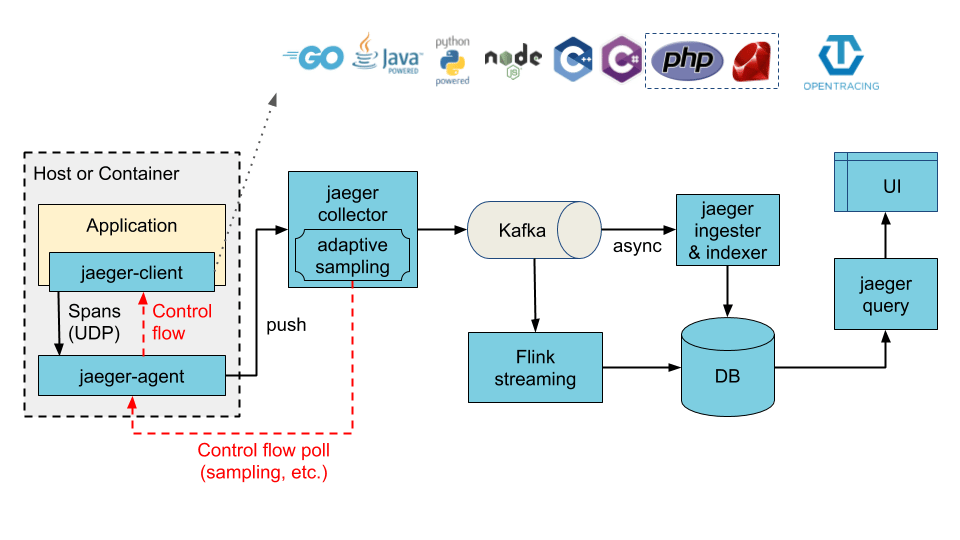

jaeger-arch

主要有以下几个组件：

Jaeger Client : OpenTracing API 的具体语言实现。它们可以用来为各种现有开源框架提供分布式追踪工具。
Jaeger Agent : Jaeger 代理是一个网络守护进程，它会监听通过 UDP 发送的 span，并发送到收集程序。这个代理应被放置在要管理的应用程序的同一主机上。这通常是通过如 Kubernetes 等容器环境中的 sidecar 来实现的。
Jaeger Collector : 与代理类似，该收集器可以接收 span，并将其放入内部队列以便进行处理。这允许收集器立即返回到客户端/代理，而不需要等待 span 进入存储。
Storage : 收集器需要一个持久的存储后端。Jaeger 带有一个可插入的机制用于 span 存储。
Query : Query 是一个从存储中检索 trace 的服务。
Ingester : 可选组件。Jaeger 可以使用 Apache Kafka 作为收集器和实际后备存储之间的缓冲。Ingester 是一个从 Kafka 读取数据并写入另一个存储后端的服务。
Jaeger UI : Jaeger 提供了一个用户界面，可让您可视觉地查看所分发的追踪数据。在搜索页面中，您可以查找 trace，并查看组成一个独立 trace 的 span 详情。

本地环境部署

主要是偏重使用 all-in-one 方式

docker 部署

docker run -d --name jaeger \
  -e COLLECTOR_ZIPKIN_HOST_PORT=:9411 \
  -p 5775:5775/udp \
  -p 6831:6831/udp \
  -p 6832:6832/udp \
  -p 5778:5778 \
  -p 16686:16686 \
  -p 14268:14268 \
  -p 14250:14250 \
  -p 9411:9411 \
  jaegertracing/all-in-one:latest

k8s方式（Jaeger Operator）

apiVersion: jaegertracing.io/v1
kind: Jaeger
metadata:
  name: local-jaeger
spec:
  strategy: allInOne # 部署策略
  allInOne:
    image: jaegertracing/all-in-one:latest
    options:
      log-level: debug # 日志等级
  storage:
    type: memory # 可选 Cassandra、Elasticsearch
    options:
      memory:
        max-traces: 100000
  ingress:
    enabled: false
  agent:
    strategy: sidecar # 代理部署策略可选 DaemonSet
  query:
    serviceType: NodePort # 用户界面使用 NodePort

测试环境部署

docker-compose部署

version: "3"
services:
  zookeeper:
    image: 'bitnami/zookeeper:latest'
    ports:
      - '2181:2181'
    environment:
      - ALLOW_ANONYMOUS_LOGIN=yes
    networks:
      - jaeger

  kafka:
    image: 'bitnami/kafka:latest'
    ports:
      - '9092:9092'
    environment:
      - KAFKA_BROKER_ID=1
      - KAFKA_CFG_LISTENERS=PLAINTEXT://:9092
      - KAFKA_CFG_ADVERTISED_LISTENERS=PLAINTEXT://10.10.10.10:9092
      - KAFKA_CFG_ZOOKEEPER_CONNECT=zookeeper:2181
      - KAFKA_CFG_OFFSETS_TOPIC_REPLICATION_FACTOR=1
      - ALLOW_PLAINTEXT_LISTENER=yes
    depends_on:
      - zookeeper
    networks:
      - jaeger

  collector:
    container_name: jaeger-collector
    image: 'jaegertracing/jaeger-collector:latest'
    ports:
      - '9411:9411'
      - '14250:14250'
      - '14268:14268'
      - '14269:14269'
    environment:
      - SPAN_STORAGE_TYPE=kafka
      - KAFKA_PRODUCER_BROKERS=kafka:9092
      - KAFKA_PRODUCER_TOPIC=tracing_jaeger_span_test
      - LOG_LEVEL=debug

    networks:
      - jaeger

  agent:
    image: 'jaegertracing/jaeger-agent:latest'
    ports:
      - '5775:5775/udp'
      - '6831:6831/udp'
      - '6832:6832/udp'
      - '5778:5778'
    environment:
      - REPORTER_GRPC_HOST_PORT=collector:14250
      - LOG_LEVEL=debug
    depends_on:
      - jaeger-collector
    networks:
      - jaeger

  query:
    container_name: jaeger-query
    image: 'jaegertracing/jaeger-query:latest'
    ports:
      - '16686:16686'
      - '16687:16687'
    environment:
      - SPAN_STORAGE_TYPE=elasticsearch
      - ES_SERVER_URLS=10.10.10.20:9090  # es地址
      - LOG_LEVEL=debug

    networks:
      - jaeger

  ingester:
    container_name: jaeger-ingester
    image: 'jaegertracing/jaeger-ingester:latest'
    ports:
      - '14270:14270'
    environment:
      - SPAN_STORAGE_TYPE=elasticsearch
      - ES_SERVER_URLS=10.10.10.20:9090
      - LOG_LEVEL=debug
    networks:
      - jaeger
    entrypoint: ["/go/bin/ingester-linux", '--kafka.consumer.brokers=kafka:9092', '--kafka.consumer.topic=tracing_jaeger_span_test']

networks:
  jaeger:

线上环境部署

以下均使用k8s方式部署

部署 Jaeger Operator

原生方式

kubectl create namespace observability # <1>
kubectl create -f https://raw.githubusercontent.com/jaegertracing/jaeger-operator/master/deploy/crds/jaegertracing.io_jaegers_crd.yaml # <2>
kubectl create -n observability -f https://raw.githubusercontent.com/jaegertracing/jaeger-operator/master/deploy/service_account.yaml
kubectl create -n observability -f https://raw.githubusercontent.com/jaegertracing/jaeger-operator/master/deploy/role.yaml
kubectl create -n observability -f https://raw.githubusercontent.com/jaegertracing/jaeger-operator/master/deploy/role_binding.yaml
kubectl create -n observability -f https://raw.githubusercontent.com/jaegertracing/jaeger-operator/master/deploy/operator.yaml

kubectl create -f https://raw.githubusercontent.com/jaegertracing/jaeger-operator/master/deploy/cluster_role.yaml
kubectl create -f https://raw.githubusercontent.com/jaegertracing/jaeger-operator/master/deploy/cluster_role_binding.yaml

Helm 方式

helm install jaeger-operator jaegertracing/jaeger-operator --version=2.25.0 -f jaeger-operator-prod.yaml

jaeger-operator-prod 本身的资源配置

resources:
  limits:
    cpu: 100m
    memory: 128Mi
  requests:
    cpu: 100m
    memory: 128Mi

部署 jaeger

kubectl apply -f jaeger-prod.yaml

jaeger-prod.yaml 内容如下

apiVersion: jaegertracing.io/v1
kind: Jaeger
metadata:
  name: tracing-jaeger-prod
spec:
  strategy: streaming
  storage:
    type: elasticsearch
    options:
      es:
        server-urls: http://elasticsearch:9200
        username: ES_JAEGER_USER
        password: PASSWORD
        use-aliases: true
        index-prefix: tracing-jaeger
    # 当 use-aliases 为 true, 会开启两个cronjob: esRollover esLookback
    # 这里需要注意下版本，有些版本使用的是es6的操作语法，而本身使用的是es7的话会有一些问题
    # cronjob
    esIndexCleaner:
      enabled: true
      numberOfDays: 7
      schedule: "55 23 * * *"
    # cronjob
    esRollover:
      conditions: "{\"max_age\": \"1d\"}"
      readTTL: 120h
      schedule: "55 23 * * *"
    # 需要部署spark，供spark使用
    dependencies:
      enabled: true
      schedule: "55 23 * * *"
      sparkMaster:
      resources:
        requests:
          memory: 4096Mi
        limits:
          memory: 4096Mi

  query:
    options:
      es:
        # 使用别名进行查询
        use-aliases: true
      dependencies:
        menuEnabled: true
      # 可以自定义菜单
      menu: []

  agent:
    resources:
      limits:
        cpu: 100m
        memory: 128Mi
      requests:
        cpu: 100m
        memory: 128Mi

  collector:
    maxReplicas: 3
    resources:
      limits:
        cpu: 200m
        memory: 256Mi
    options:
      kafka:
        producer:
          # 检查 kafka配置 auto.create.topics.enable 是否为true
          # 如果为false 需要手动新建topic，否则会报错
          topic: tracing-jaeger-spans
          brokers: kafka1:9092,kafka2:9092,kafka3:9092

  ingester:
    maxReplicas: 3
    resources:
      limits:
        cpu: 300m
        memory: 512Mi
    options:
      kafka:
        consumer:
          topic: tracing-jaeger-spans
          brokers: kafka1:9092,kafka2:9092,kafka3:9092
      # 消费者协程数，默认1000
      numRoutines: 1000

Reference
